Lean Matrix

An additive matrix of leans.

leanmatrix in editor

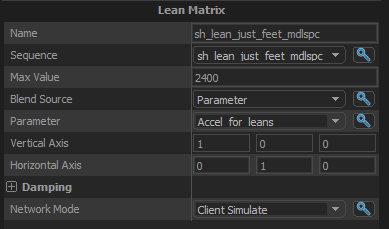

leanmatrix properties

Max Value​

Blend Source​

Parameter​

Vertical Axis​

Horizontal Axis​

Damping​

Controls how the output of this node is blended over time.

Speed Function​

Controls how damped speed is adjusted based on how far the current value is from the target value.

  • No Damping: Damping is not applied.
  • Constant: The damping speed does not change with distance from the target value.
  • Spring: A critically damped spring is used to accelerate the current value toward the target value. The farther the current value is from the target, the more the acceleration. However the spring will not overshoot the target value.
  • Asymmetric Spring

Speed Scale​

Scales the speed of the damping, or in the case of the Spring Speed Function it controls the strength of the spring.

Speed Scale (Falling)​

When using AsymmetricSpring for Speed Function it controls the strength of the spring, only when damping to a lower value.

Limit Speed​

Toggle whether or not to clamp the damping speed

Min Speed​

If Limit Speed is set, this is the slowest speed that the dampened value can change at.

Max Speed​

If Limit Speed is set, this is the fastest speed that the dampened value can change at.
