Bone Mask

Creates a new pose by doing a per-bone blend of two base poses. The per-bone weights are defined in the ModelDoc.

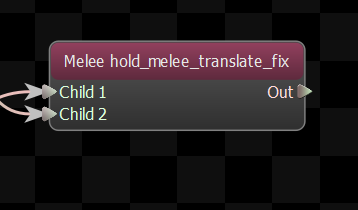

bonemask in editor

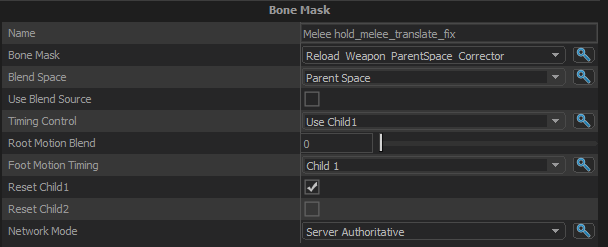

bonemask properties

Blend Space​

The coordinate system that the bone transforms should be blended in.

  • Parent Space (Default): Relative to each bones' parent
  • Model Space: Relative to the entity's model. Think world space if the entity was standing at the world origin
  • Model Space, Rotation Only: Same as model space, but only the rotation is blended. This prevents the mesh from deforming unnaturally due to unwanted bone translation.

Use Blend Source​

When enabled, a value will be used to scale the values of the bone mask. A value of 0 means nothing is blended in (ie: Child 1 is used unmodified), and a value of 1 means that 100% of the bone mask is used to blend Child 2 onto Child 1.

Timing Control​

Choose how the node its presents its timing to its parent node.

  • Use Child1: Use the cycle and duration of Child1 as the cycle and duration of this node. The child nodes are not synchronized.
  • Use Child2: Use the cycle and duration of Child2 as the cycle and duration of this node. The child nodes are not synchronized.
  • Synchronize Children: The cycle of the child nodes are kept in sync, and the cycle and duration of this node is a blend of the values from both children.

Root Motion Blend​

Controls how the root motion is blended between the two source animations. A value of 0 means use only the motion from Child1, a value of 1 means use only Child2.

Foot Motion Timing​

Choose how the node its presents its foot motion timing to its parent node.

  • Use Child1: The foot motion from the first child is used
  • Use Child2: The foot motion from the second child is used

Reset Child1​

If true, then when this node receives a reset it will forward the reset on to Child1.

Reset Child2​

If true, then when this node receives a reset it will forward the reset on to Child2.
