State Machine Node

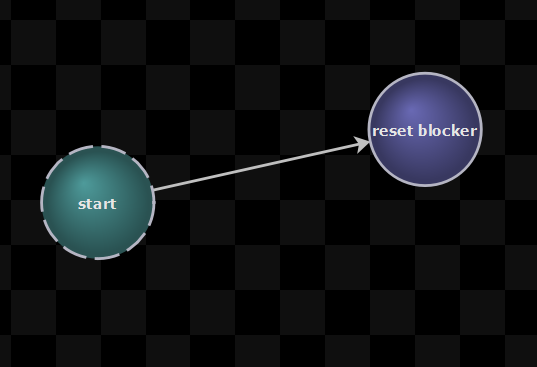

This graph node uses states, transitions, and conditions to determine which child node should be used.

statemachine node

statemachine

Block Tags From Waning States​

When enabled, only the current state's anim events or anim tags will be allowed through. Events and Tags from states that are blending out (and all their children) will be blocked.

Lock State when Waning​

When enabled this will prevent the state machine from changing states if it is not part of the active branch of the graph, but is still getting updated because it is blending out.

Animation State​

The state in a state machine. Stuff can be attached to it.

statemachine state

Name​

The name of this state.

Exclusive Root Motion​

Normally, root motion and the animation itself is blended between the old state and the new state when a state transition occurs.

When this option is set and this state becomes the current state, only its root motion is used, and it is not blended with the root motion of the old state, but the animation is still blended.

Exclusive Root Motion - First Frame​

Previous state root motion will be dropped even on the first frame of a transition to this state when the root motion of this state isn't available yet.

Start State​

Toggles whether this state should be the current state when the graph is reset. Each state machine should have exactly one start state.

End State​

If a state is marked as an End State, and its child is "finished", then the state machine will tell its parent that it also is "finished". State machines can have zero or more End States.

Passthrough​

Normally when a state becomes the current state, its exit transitions are not evaluated until the next time the graph is updated. Setting a state as a Passthrough State will cause it to evaluate its exit transitions during the same update that it becomes the current state. So its possible for the state become the current state, then pass control to another state in the same frame.

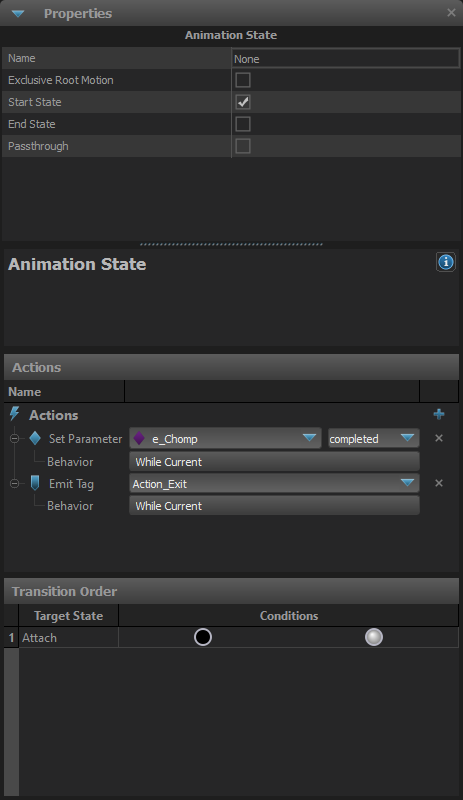

Animation State - Actions​

During the state's emission, it can be made to emit tags, parameters, expressions or set components.

Emit Tag​

Emit one of the defined tags. Behavior:

  • While Current: Tag will be set while the current state is active.
  • On Enter: Tag will emit when we enter this state.
  • On Exit: Tag will emit when this state no longer becomes active.
  • On Enter and Exit: Tag will emit when we enter and exit this state.

Set Parameter​

Emit one of the defined parameters. Behavior:

  • While Current: Parameter will be set while the current state is active.
  • On Enter: Parameter will emit when we enter this state.
  • On Exit: Parameter will emit when this state no longer becomes active.
  • On Enter and Exit: Parameter will emit when we enter and exit this state.

Expression​

Expression will set a parameter and an expression will be run.

statemachine state expression

Parameter to Set​

Set a parameter.

Expression​

An expression is defined here.

Behavior:​
  • While Current: Parameter will be set while the current state is active.
  • On Enter: Parameter will emit when we enter this state.
  • On Exit: Parameter will emit when this state no longer becomes active.
  • On Enter and Exit: Parameter will emit when we enter and exit this state.

Toggle Component​

Toggle a component to be on/off.

Animation State - Transition​

A transition between two states. Defines what conditions need to be met in order for the transition to be taken, and how the old node should blend into the new node.

Disable​

Disables the transition, causing the state to ignoring when evaluating transitions to other states. Useful for debugging or temporarily disabling features without losing all the conditions and settings.

Blend Duration​

How long the blend from the old state to the new state should take. Can be either a Constant Duration set or a Parameter.

Reset Destination​

When true, the child node connected to the destination state will be reset when this transition is taken.

Start Cycle At​

Set the cycle that the destination state should be reset to.

  • Beginning : Set the state's cycle to 0
  • SameAsSourceState : Set the destination state's cycle to the source state's cycle
  • InverseSourceCycle : Set the destination state's cycle to (1 - source state's cycle)
  • SameTimeAsSource : Set the cycle of the target such that the time into the source and target states will match

Fixed Start Cycle Value​

If this transition is set to reset the destination state to a fixed value, this is the cycle value to reset it to.

Blend Curve​

Controls the blend to the target state.

  • Linear

statemachine linear

  • Ease In

statemachine easein

  • Ease Out

statemachine easeout

  • Ease In-Out

statemachine easeinout

Animation State - Condition​

List of conditions that must be met in order to activate this transition.

Condition Parameters​

  • == : Equals
  • != : Not Equals
  • > : Greater
  • >= : Greater or Equal
  • < : Less
  • <= : Less or Equal

AND Condition​

Cycle Condition​

A condition that will trigger only when an animation cycle will be the defined value.

Finished Condition​

A condition that will trigger only when the child is finished or almost finished.

  • On Almost Finished: Will trigger when the child is almost finished.

  • On Finished: Will trigger when the child is finished.

  • True

  • False

OR Condition​

List of defined OR conditions.

Parameter condition​

Condition that will trigger when the parameter is our defined value.

State Status Condition​

Condition that triggers depending on the state status.

State Value Type​
  • Source State Blend Weight
  • Target State Blend Weight
  • Total Translation (Source State)
  • Total Translation (Target State)
State Comparison Value Type​
  • Fixed Value
  • Parameter
  • State Value

Tag Condition​

Condition that triggers based if the tag is active or not active.

Time Condition​

Condition that triggers depending on the time in state.
