Creating and using overlays in SteamVR

Creating the overlay material​

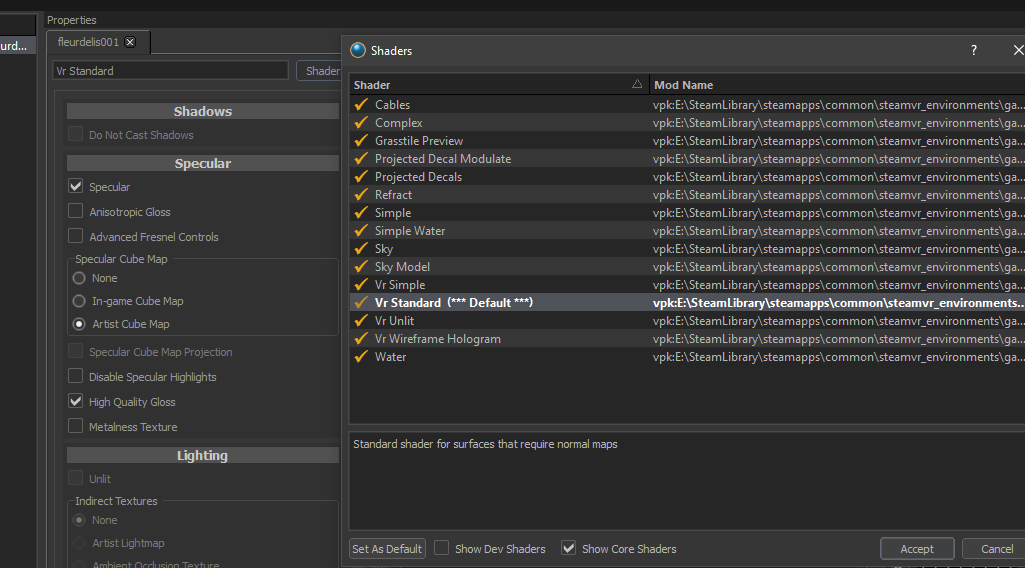

  1. Create a new material and set the shader to VR Standard.
    metovrly1

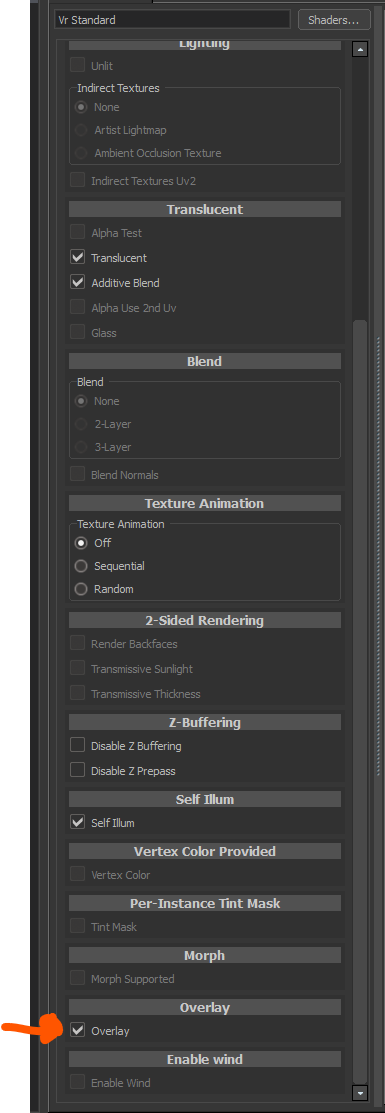

  2. Scroll down until you see a check box called Overlay, then enable it.
    metovrly2

Creating the overlay in Hammer​

Method 1​

Unlike Half-Life: Alyx iconHalf-Life: Alyx or Counter-Strike 2 iconCounter-Strike 2, Steam VR iconSteam VR has no Overlay window in the Hammer Asset Browser, so you cannot drag and drop the material into the scene.

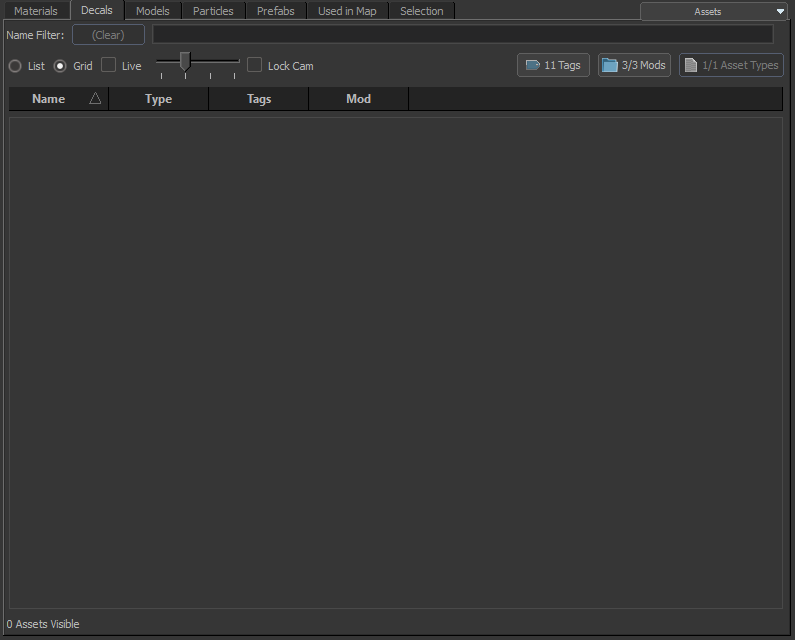

Steam VR iconSteam VR Hammer Asset Browser

assetbrwserdecalssteamvr

To avoid this, select the material in the Material window of the Hammer Asset Browser and drag the material from the Active Material window.

info

In case Hammer does not show the Asset Browser, just change the viewport.

Details

Method 2​

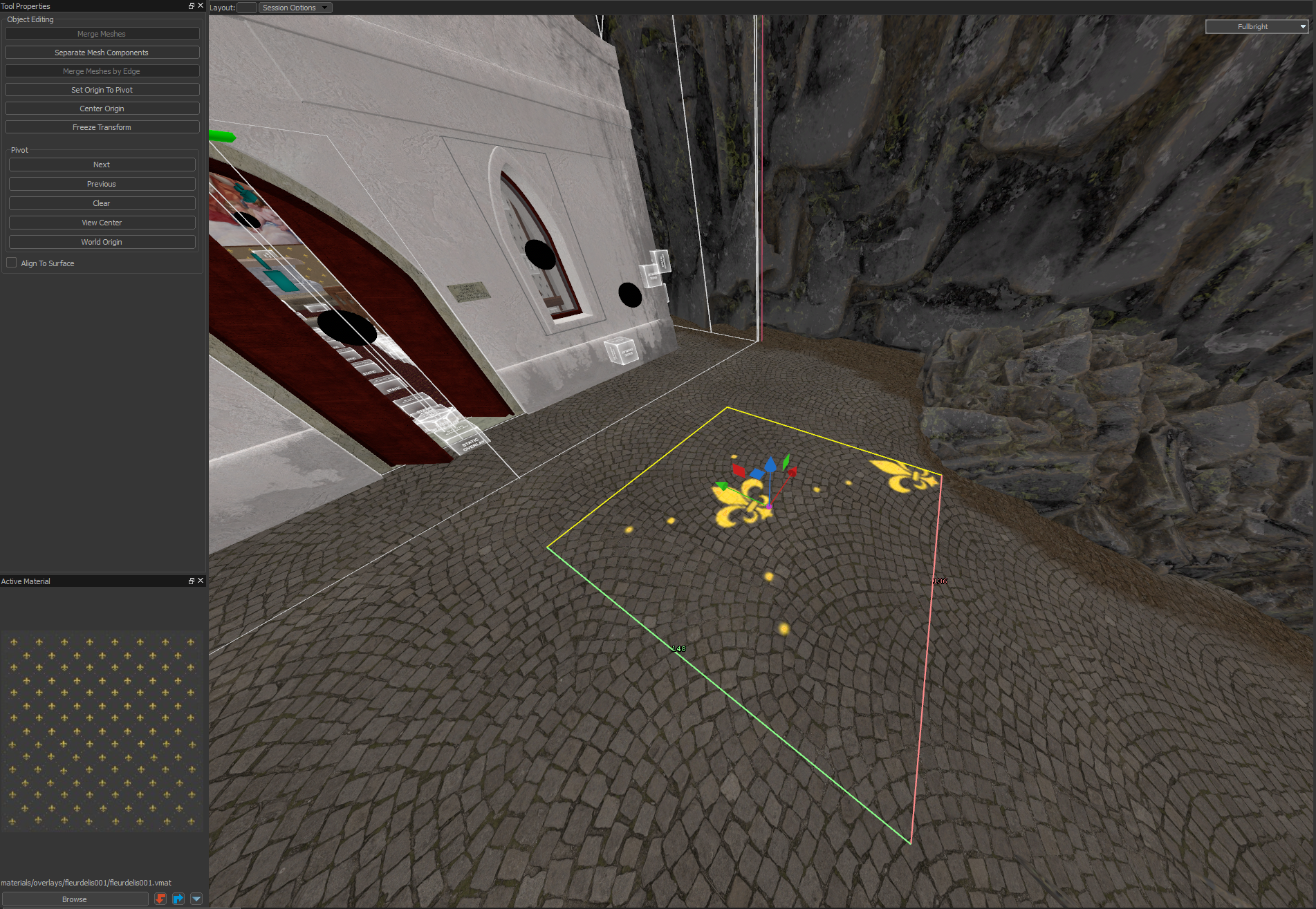

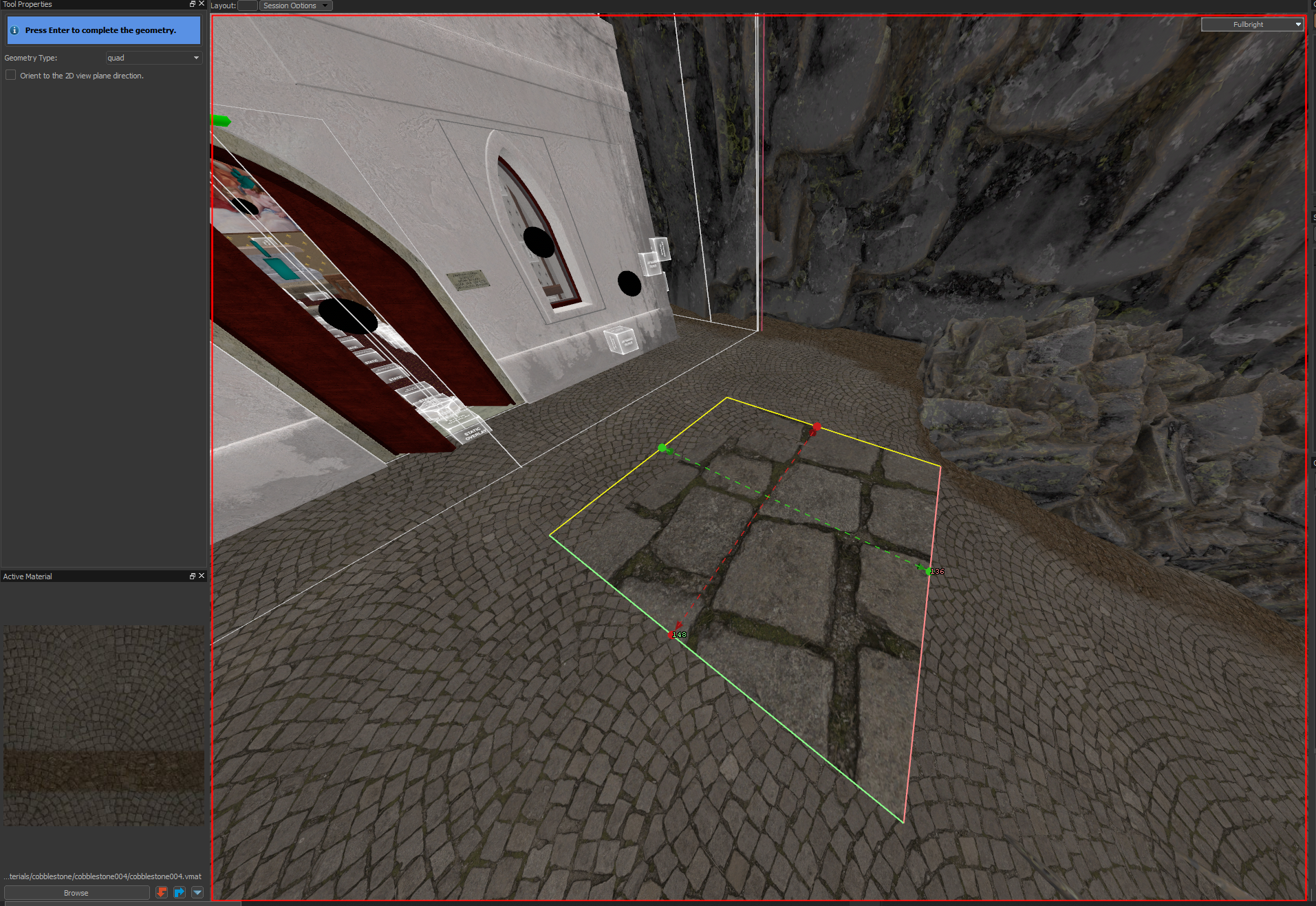

  1. Create a Quad and apply the overlay material.
    converttooverlay2
    converttooverlay3

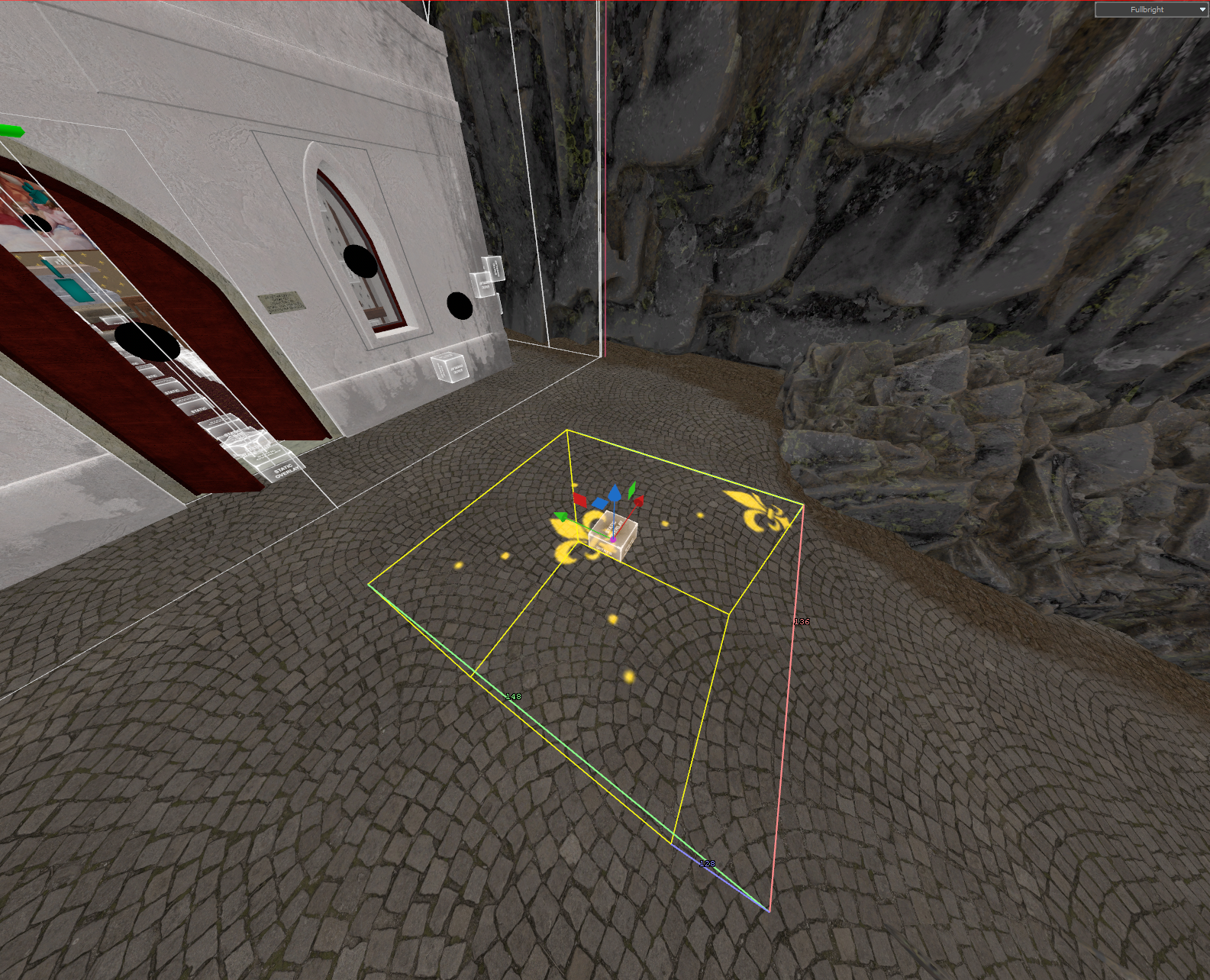

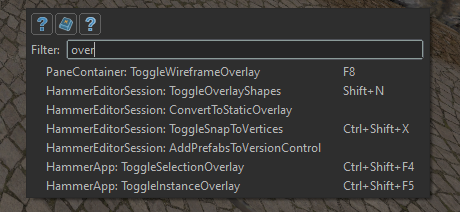

  2. Press F1, type ConvertToStaticOverlay, and press Enter.
    converttooverlay1
    converttooverlay4
